Joysense Cable Sdn Bhd is a fully owned local company which operated since April 2011. It is located at No.2, Jalan TSB 4, Taman Industri Sg Buloh, 47000 Sg Buloh, Selangor, Malaysia. We have obtained an exclusive right of distribution from the main Aluminium Alloy cable manufacturer which is Anhui Joysense Cable in China and also approval from Standards and Industrial Research Institute of Malaysia (SIRIM) as well as Malaysia Fire and Rescue Department (BOMBA).
Who Are We
We exercise strict and highest standards of quality control to ensure the best quality of cable. We are confident to be able to realize this vision as a developed and competitive company in this area in this era of modernization and globalization. Our pledge is to maintain this continuous effort to strive for excellence in supplying the best product for our country.
Why Choose Us
Best Quality Product
We provide the best quality product and service at prices that may exceed your expectations.
Creative Problem Solving
We find creative approaches to generate new ideas, find fresh perspectives, and evaluate and produce effective solutions.
Comparative Pricing
We have a better pricing policy that makes our products available at very competitive prices in the market.
Innovative & Customised Solutions
We know all businesses have different requirements and we can work closely to provide the right solutions for your business.
Certified for Safety & Quality
As a quality product from Malaysia, we are certified and fully compliant to Malaysia SIRIM safety standards.
Awards & Recognition
We have received numerous awards and we can assure you our products meet the highest quality standards in the industry.
Joysense Aluminium Alloy Power Cables

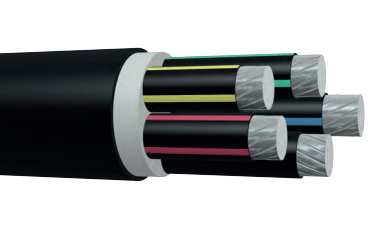

YJHLV – Unarmoured Cable
Single core and multi core power cable with compact stranded class 2 aluminium alloy 8000 series conductor, XLPE insulated and PVC sheathed. Cable conforms to IEC 60502 and has option for IEC 60332 Flame Retardant Category A and Low Smoke Zero Halogen.

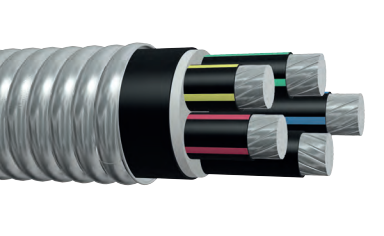

YJHLV8 – Type MC – Interlocking Conduit
Single core and multi core power cable with compact stranded class 2 aluminium alloy 8000 series conductor, XLPE insulated, PVC sheathed and Interlocking Aluminium Tape Armoured. Cable conforms to IEC 60502 and has option for IEC 60332 Flame Retardant Category A and Low Smoke Zero Halogen.

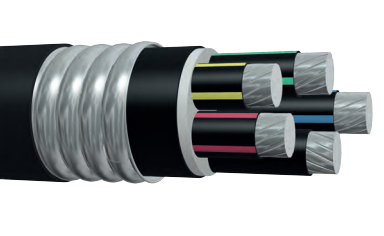

YJHLV82 – Interlocking Armoured Cable
Single core and multi core power cable with compact stranded class 2 aluminium alloy 8000 series conductor, XLPE insulated, PVC sheathed and Interlocking Aluminium Alloy Armoured. Cable conforms to IEC 60502 and has option for IEC 60332 Flame Retardant Category A, IEC 60331 Fire Resistant and and Low Smoke Zero Halogen. Light weight and anti corrosive.
YJHLV22 – Double Steel Tape Armoured Cable
Single core and multi core power cable with compact stranded class 2 aluminium alloy 8000 series conductor, XLPE insulated, PVC sheathed and Double Steel Tape Armoured. Cable conforms to IEC 60502 and has option for IEC 60332 Flame Retardant Category A, IEC 60331 0r BS 6387 Fire Resistant and Low Smoke Zero Halogen.
Advantages Using JoySense Cable
Internationally Cutting Edge Technology
New type 8000 series aluminium alloy with mixture of iron, rare earth and other elements after the processes of drawing, compacting and special annealing has better conductivity and superior mechanical property. Conductors are insulated with fire retardant silane cross linked polyethylene developed and patented by Joysense, with armour using interlocked aluminium alloy armour and patented sheath that is low smoke zero halogen fire retardant environmental friendly material. Spring back of aluminium alloy is 40% less than copper while flexibility is 30% more. Overall this helps to guarantee stable connection even when expose to continuous over-carrying ampacity and heat, and reduces fire risk.
Huge Economic Benefit
Copper resources are relatively more expensive and fluctuate greatly with supply getting scarce; oppositely aluminium has a more stable market with abundant resources available. At the same current carry capacity, aluminium alloy has half the weight and better flexibility. This reduces the amount of fix support needed for the cable and reduces the man hour needed during the installation because it is easier to install and thus further saves money. Accordingly, our product has already enjoyed a favourable market worldwide, helping project to save money and within budget.
Displacement of Copper Resources
With the demand for copper resources increases gradually, copper reserves are getting lesser worldwide. After oil, copper has become another strategic resources that influences one nation’s economic safety. Although aluminium is also being in demand but it still has abundant reserve around the world. Our Aluminium alloy has electrical performance just as good as copper while the physical performance is better than copper. It is accepted overwhelmingly by experts in this field at home and abroad and certified by big projects that our cables not only have reached the highest safety level but also achieved a considerable economic value to society. Using our aluminium alloy cable on the one hand saves a great amount of money for both end users and government, on the other, contributes immeasurably to both sustainable and conservation oriented society and national strategy.
Safety
Increased anti-creeping property of the Joysense cable when properly connected has proven to have superior and stable connectivity. Over the long term, with its superior mechanical property, regular retightening is not required as the connection will not be loosened. Combine with patented material used for the construction of the cable, the file safety of the cable is high. Patented sheath material is low smoke zero halogen and flame retardant suitable to be use for indoor and places the prioritize fire safety. Furthermore, Joysense cable passes fire testing BS 6387 Category CWZ at temperature of 950°C, IEC 60331 Class 1, IEC 60332 Category A, certified by many authority both local and worldwide.
